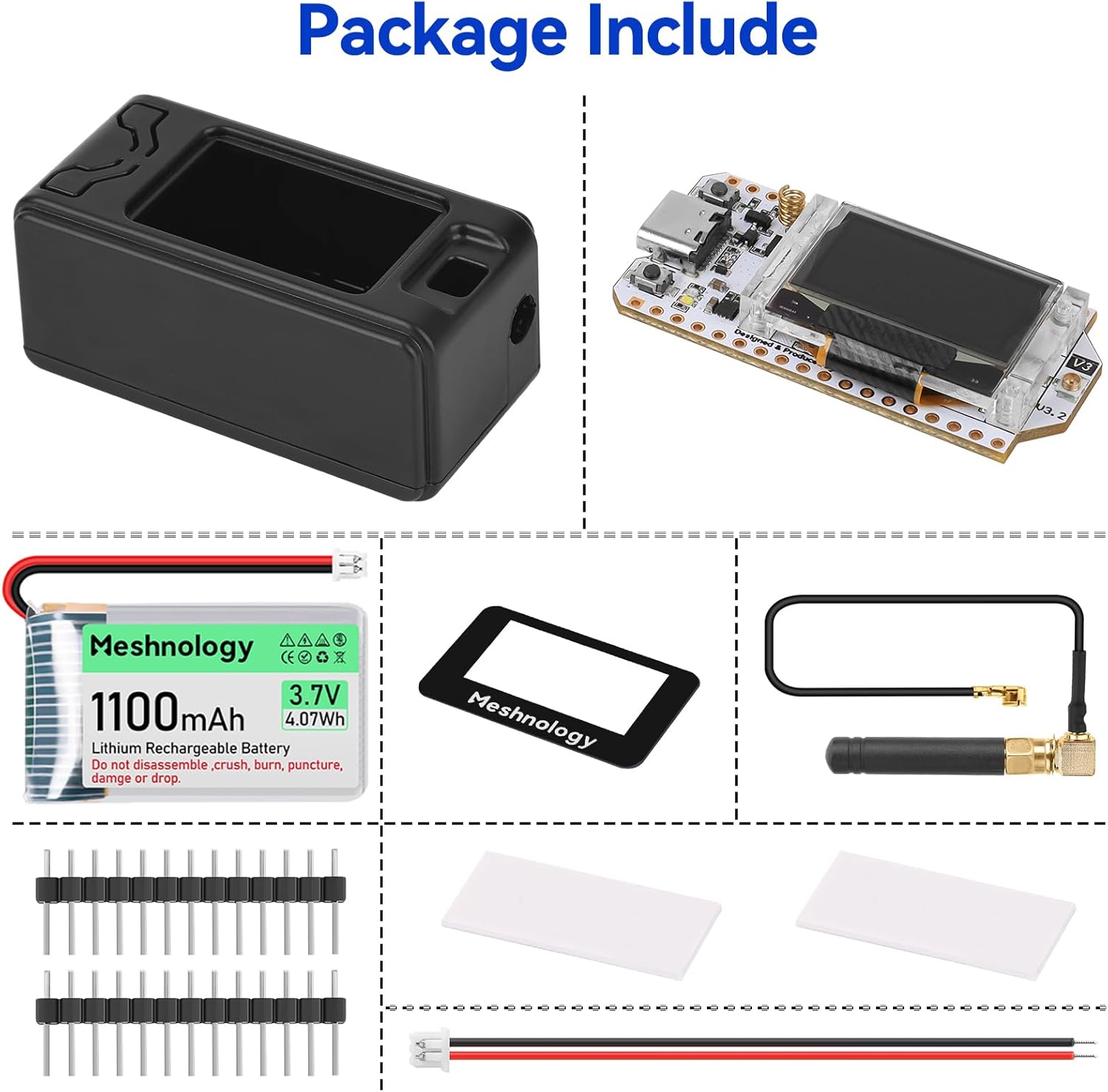

ESP32 Lo Ra V3 Development Board + 1100mAh Battery + Case + USB Charger Cable Set – with 915MHz Antenna and SX1262 Lo Ra V3 Devices for Mesh Tastic Ar duino Lo Rawan IOT (N30 Version,4-in-1,Black)

It’s a good first MeshTastic set.
This is a good set. But the dang button broke after a week of use. However, they manufacturer made it more than right. It comes flashed with Heltec’s firmware which might not be trivial to change, but there are Discord servers which can help set up your device with the firmware you want. The Muzi whip might be a good product to pair this with–which is what I did. The SWR is good for 906MHz. The fit of the board and battery are fine in the case, although I had trouble with the SMA connector. I put the star washer on the inside with the split washer and nut on the outside–otherwise it just wouldn’t fit. Battery life isn’t that great as of this review because intelligent power management hasn’t been integrated with the MeshTastic firmware. It lasts about 8-10 hours. However, it has WiFi and Bluetooth which is great for management. I would recommend WiFi if possible because it’s so much faster. Connectivity seems on par with the limitations of LoRa and the environment I’m in.

No conectar la bateria antes que la antena
Excelente, solo se debe ensamblar y conectar para flashear. Luego se conecta a un teléfono con la app Meshtastic, después de una semana de prueba, sorprende la distancia que puede cubrir y la duración de la batería. Totalmente recomendada la compra, sobre todo en esta oferta de casi 10 $ menos.

No directions for assembly. Lots of small components with no clear ways to know where they go
This device comes completely disassembled with no directions. With all the small wires and batteries in the package, I am not sure I would be connecting them accurately.An instruction sheet or video to where things need to be attached would be nice.

Up and running
No clear instructions on how to setup. Tried contacting seller but no response.Now after sourcing around a bit, finally have both up and running.Note: updated firmware on linuxmint via Meshtastic flasher. Must use data only cable, using Chrome (Chromium for linux) browser. If you get error:lora NetworkError: Failed to execute ‘open’ on ‘SerialPort’: Failed to open serial port.This error typically occurs when the serial port is already in use by another application or if there are permission issues. Ensure that no other programs are accessing the serial port and check your device permissions. Wikipedia forum.edgeimpulse.comUnderstanding the Serial Port ErrorThe error “Failed to execute ‘open’ on ‘SerialPort’: Failed to open serial port” typically indicates an issue with accessing the serial port on your device. This can happen for several reasons.Common CausesCause DescriptionDriver Issues The correct driver for your device may not be installed. Ensure you have the right driver, such as CH340 or CP210x.Permission Errors On systems like Ubuntu, you may need to adjust permissions. Use the command sudo chmod 777 /dev/ttyUSB0 to grant access.Port Already in Use Another application may be using the serial port. Close any programs that might be connected, like Arduino IDE or terminal emulators.Faulty USB Cable Ensure you are using a data USB cable, not just a power cable. Try a different cable if necessary.Incorrect Port Selection Make sure you are selecting the correct serial port in your software. Check your device manager for the right COM port.Troubleshooting StepsCheck Drivers: Install or update the necessary drivers for your device.Close Other Applications: Ensure no other applications are using the serial port.Adjust Permissions: If on Linux, modify permissions for the serial device.Use a Different Cable: Test with another USB cable to rule out hardware issues.Restart the Device: Unplug and replug the device to reset the connection.By following these steps, you should be able to resolve the serial port error and successfully connect your device.Just for clarification, this is what I did specifically to address my issue:Permission Errors On systems like Ubuntu, you may need to adjust permissions. Use the command sudo chmod 777 /dev/ttyUSB0 to grant access.

Boitier parfaitement adapté à l’Heltec 32 V3. Prévoir une batterie LiPo 802540 dont le logement est également parfaitement ajusté. Il est bien fini et d’apparence solide. Une sortie USB sur le dessus aurait été un plus car si un câble de recharge est branché, on ne peut le poser droit. Satisfait de cet achat.

IMPORTANT TO KNOW…These Heltec V3’s work great and are currently operating as they should. However, there are a few things you should know. When you first try to flash them with meshtastic, they need to be in “boot mode”. Hold the power button while plugging into the usb on your pc. If they don’t show up in the devices you will need to download a driver from the web (search for it) and manually load the driver the way you would any hardware. Second, they do not work well when they are on and within BLE (bluetooth) range of each other. They will act buggy, constantly reboot and will be hard to stay connected in the app. Use one at a time when they are within 100′ of each other. Third, they will also act buggy when they are in a heavy wifi signal or bluetooth environment. They do not handle high traffic bluetooth and wifi devices. Keep this in mind before you get too frustrated, they should work good otherwise.
